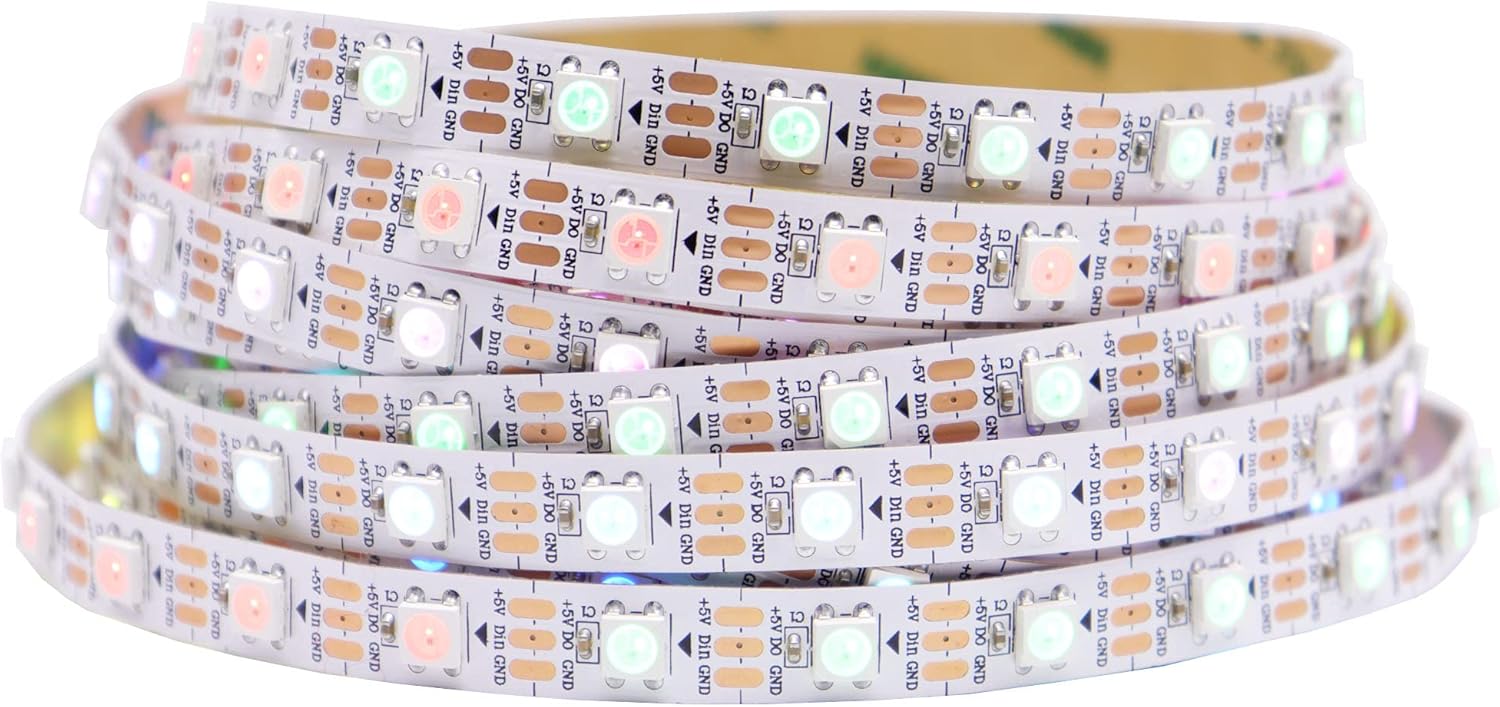

WS2812B IC RGB 5050SMD ECO Individual Addressable LED Strip Light, 16.4FT 300LED 60LED/m Flexible Full Color IP30 DC5V White PCB for DIY Project (No Power Adapter or Controller)
Product details
| Management number | 218950146 | Release Date | 2026/05/03 | List Price | $5.60 | Model Number | 218950146 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Individually Addressable LEDs】 Dream full color chasing color Programmable LED Strip with WS2812B IC Built-in 5050SMD. Offering static effects, chasing effects, special effects, and more. 256 Brightness Display and 24-Bit Color Display. Each pixel can have its own color and brightness as your preference.
- 【Compatible Controllers】 The addressable WS2812B IC chip is built-in the 5050 RGB SMD, Each LED can have its own color and brightness according to your wishes.. Compatible with A1-SLWF-03 WLED, K-1000C, Rasp Pi, UNO R3, ESP8266, ESP32.etc Programmable Controllers. Support SP611E, SP621E, and SP602E.etc music controllers. Support SP530E, DR03W, and SP511E.etc smart music controllers. Controllers need to be purchased separately.
- 【Easy to DIY】 Each LED on the LED strip can be cut out, and the remaining strip will still function. You can freely shorten, extend, or bend it according to your project needs. It comes with 3-pin JST-SM connectors and separate power/ground wires on both ends for easy installation. Separated Power/Ground Wires on Both Ends For Voltage Adding.
- 【Only Supports DC5V Power Supply】 Never use 12V or 24V power supply. Match with a controller to produce hundreds of lighting effects such as color curtains, waterfalls, raindrops, and strobe lights, you can also edit animation effect by Coreldraw/Flash/LedEdit software. Power supply needs to be purchased separately.
- 【Power】Light up 1 color (Red, Green or Blue) is 0.1W/LED; 2 color (Red+Green , Red+Blue or Green+Blue) is 0.2W/LED; 3 color (Red+Green+Blue =mixed White) is 0.3W/LED. When Light up more LEDs on full white color mode , the brightness at the end will become lower and yellower. This is a physical phenomenon of voltage drop, not a defect in the light strip. You can add DC5V voltage on the strip end to solved.It is not recommended to keep the white light at maximum brightness for extended periods.
- 【AS YOU LIKE】Led Strip Can be Use For Making Led Screen,Led Wall,advertising board, apply to Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, Parlour, Bedroom, TV light, Karaoke Television Light, Computer Light, DIY and Home Decoration Etc.
- 【Please Note】 The LED strip is made by multiple 50cm PCB, so there is a soldering point every 50cm on the strip. But this Minor flaws will has no any bad affect of the strip performance. The IP30 and IP65 versions come with double-sided adhesive tape. The IP67 LED strip does not have tape on the back. Package does not include the controller and power supply for drive the LED strip.
| UPC | 735157532707 |
|---|---|
| Color | White PCB IP30 Non Waterproof |
| Theme | Music |
| Voltage | 5 Volts |
| Wattage | 90 watts |
| Occasion | Christmas |
| Brand Name | LOAMLIN |
| Unit Count | 1.0 Count |
| Item Length | 16 Feet |
| Item Weight | 80 Grams |
| Light Color | Multicolor |
| Manufacturer | LOAMLIN |
| Model Number | WS2812B |
| Power Source | DC5V Power Support Only |
| Material Type | FPCB |
| Product Style | Modern |
| Controller Type | program |
| Item Dimensions | 196.85 x 0.39 x 0.12 inches |
| Number of Items | 1 |
| Light Source Type | LED |
| Additional Features | Cuttable, Individually Addressable, Long Life, Programmable, WS2812B RGB+IC |
| Included Components | LED Strip light x1Roll, 3 PIN male connector x1 |
| Indoor Outdoor Usage | Indoor |
| Connectivity Protocol | Depends on the controller |
| Water Resistance Level | Water Resistant |
| Number of Light Sources | 300 |
| Manufacturer Part Number | WS2812B |
